Jaw Crusher

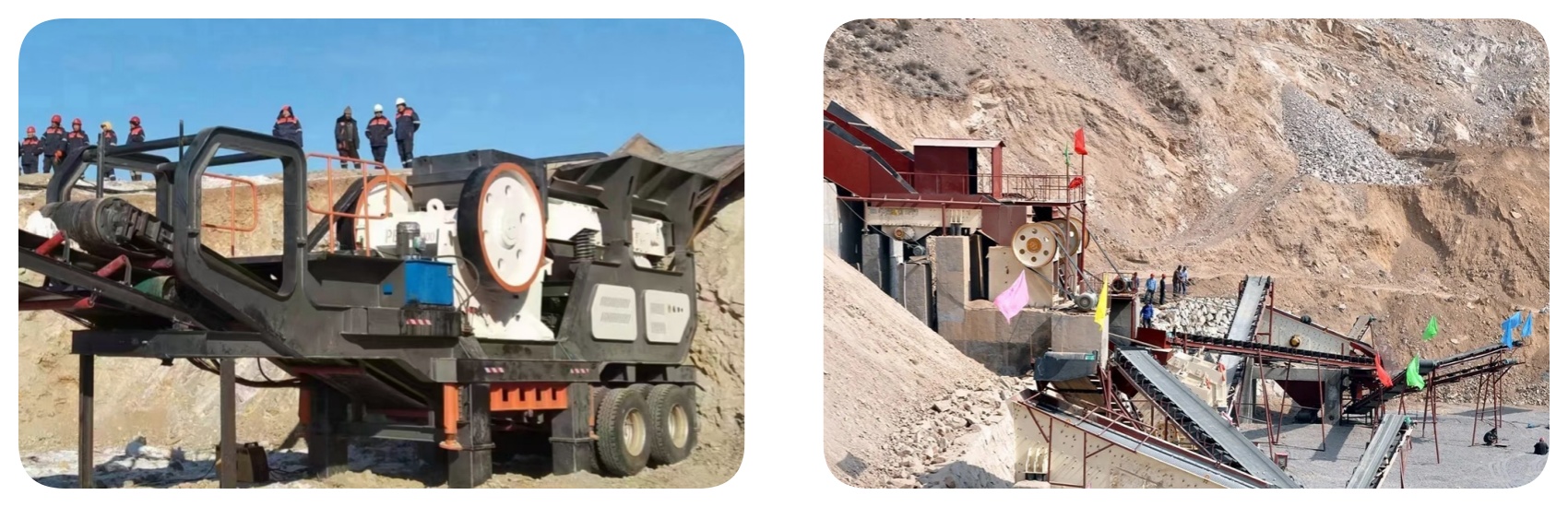

Mining, building materials, infrastructure construction and other industries

WhatsApp Email inquiry

Product Description Product Advantages Working Principle Product Features

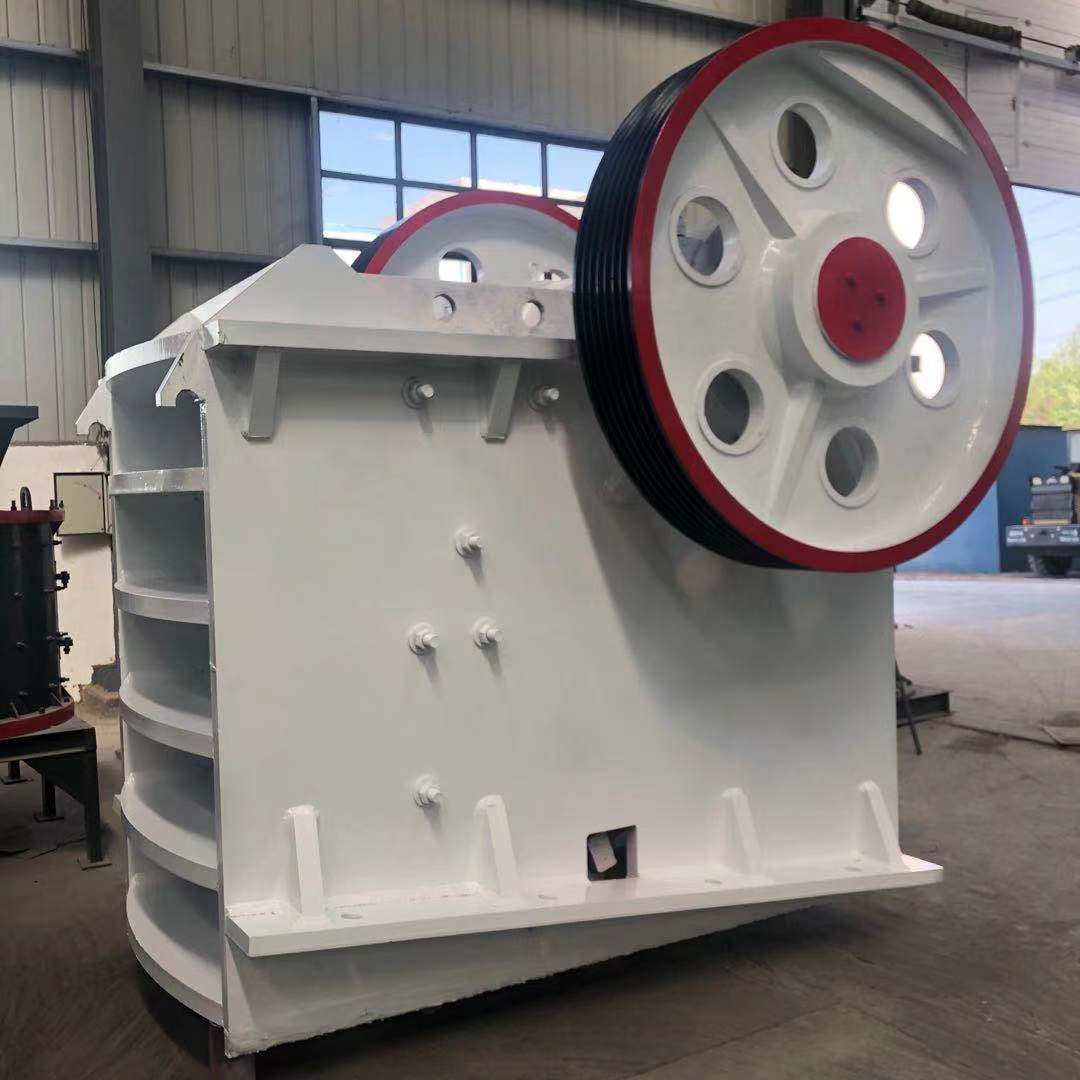

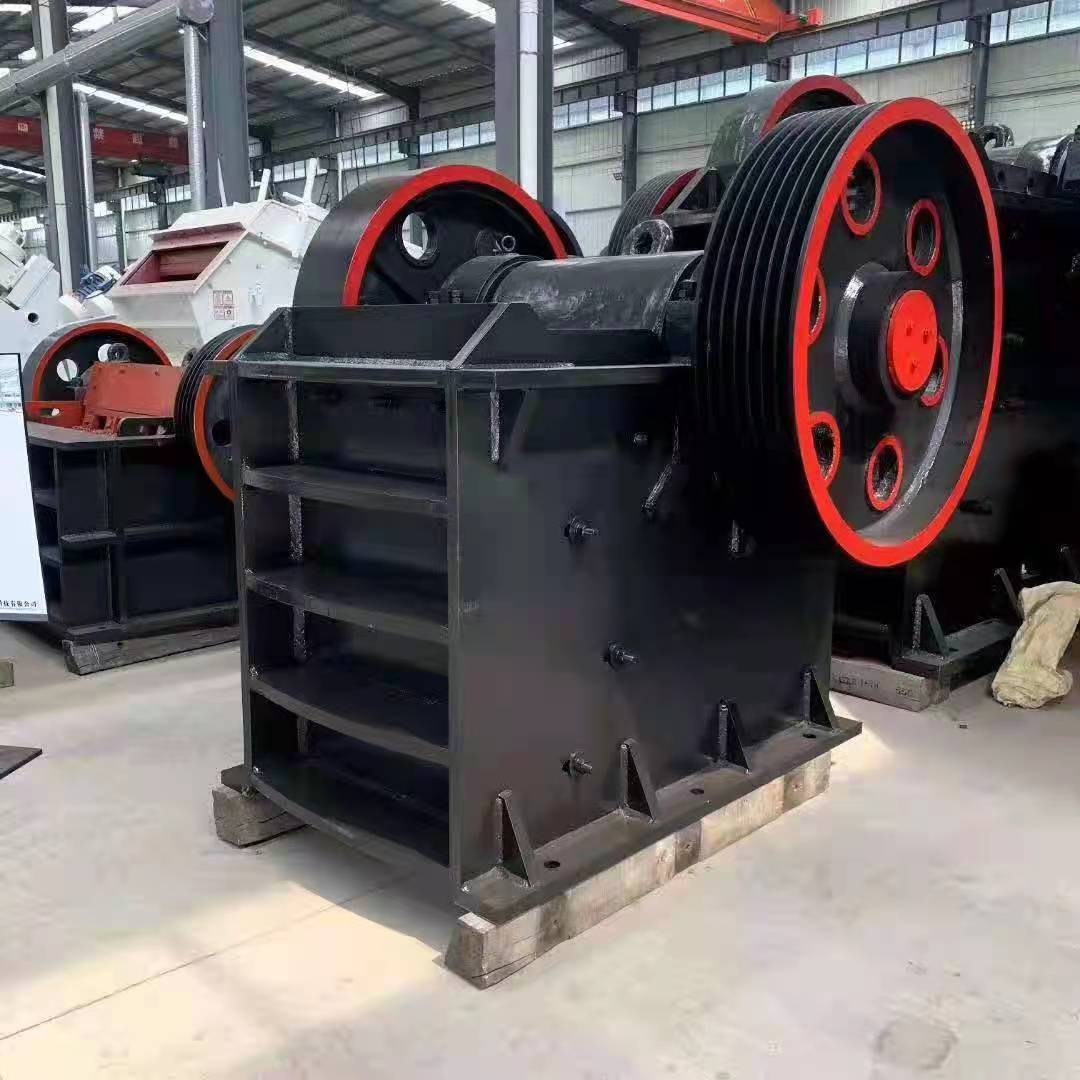

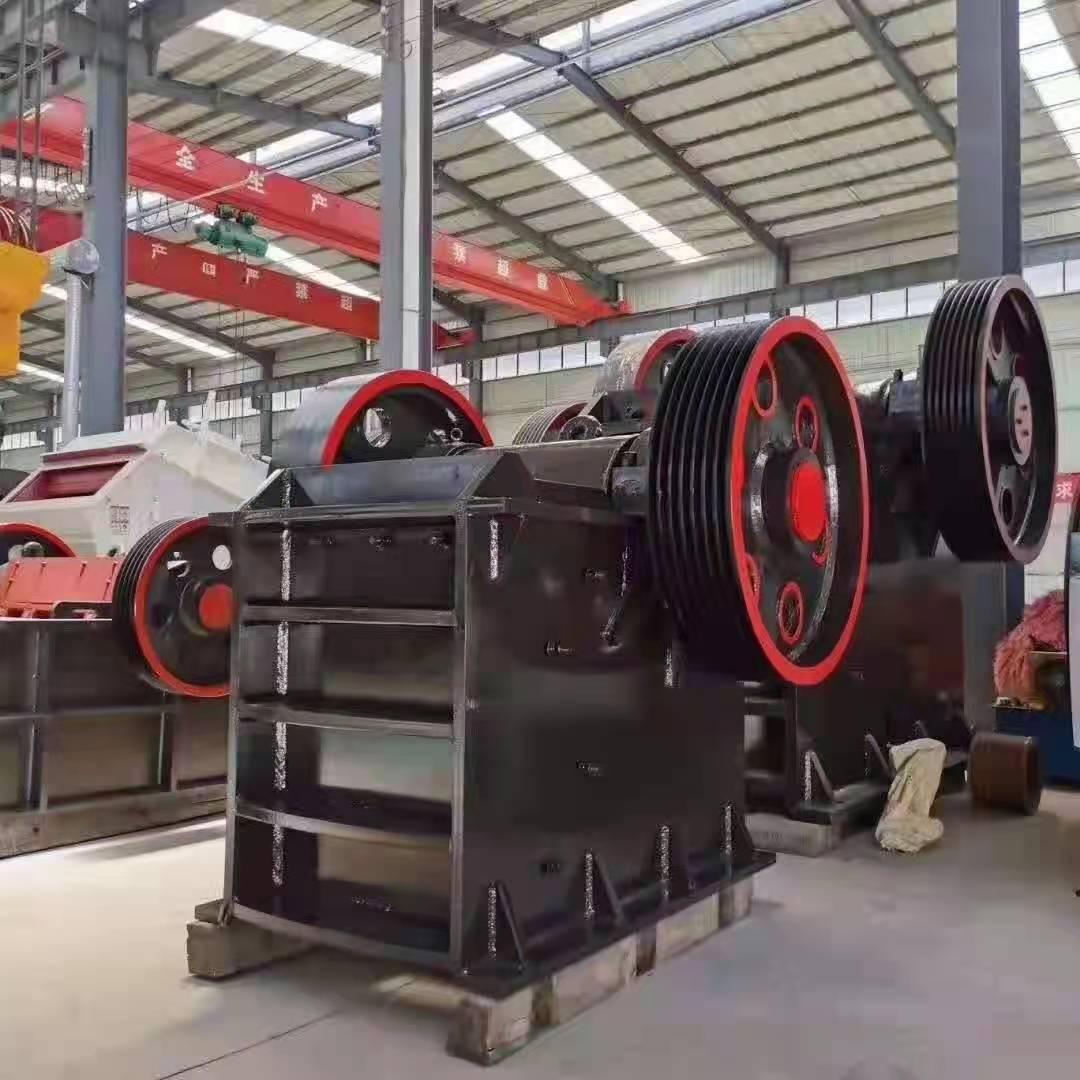

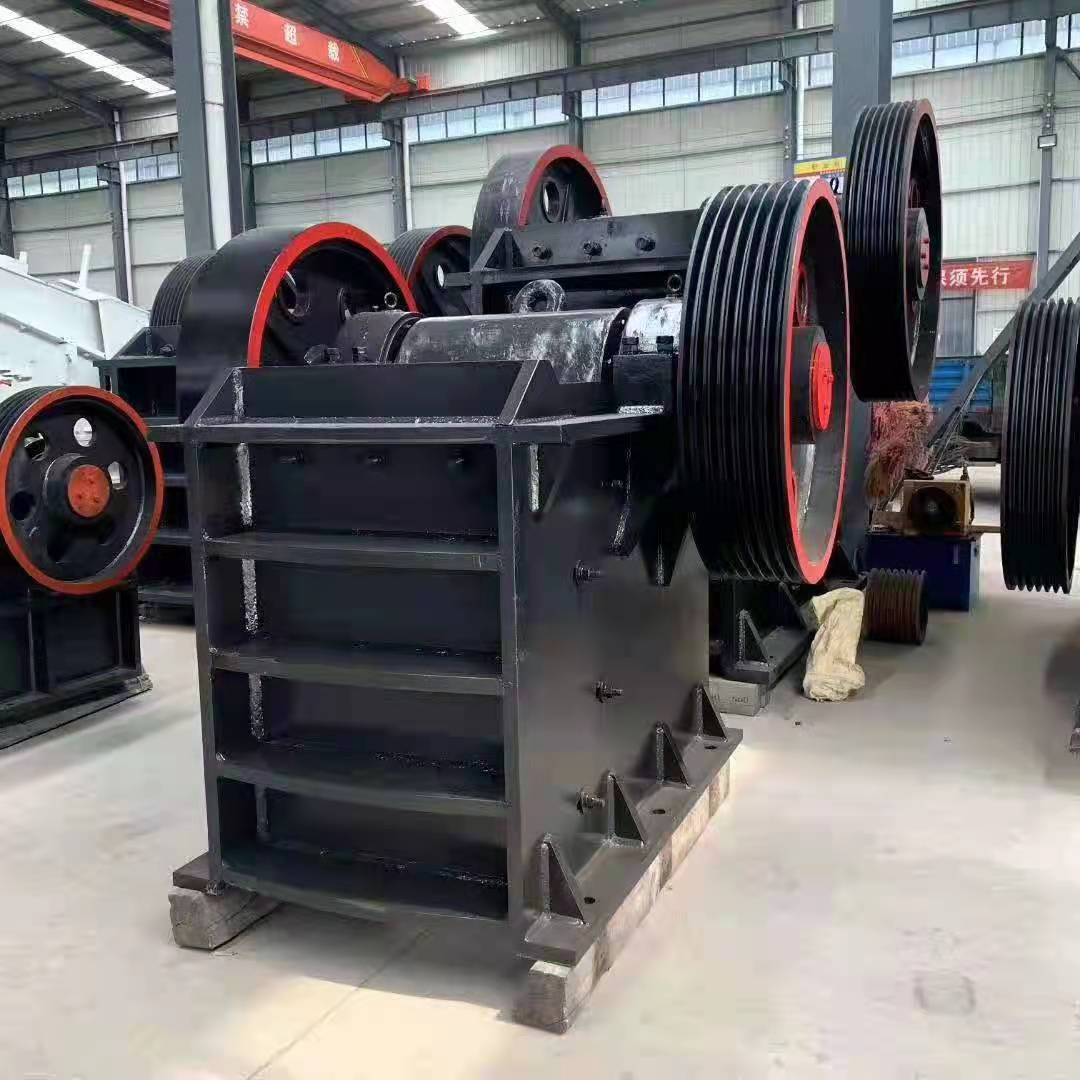

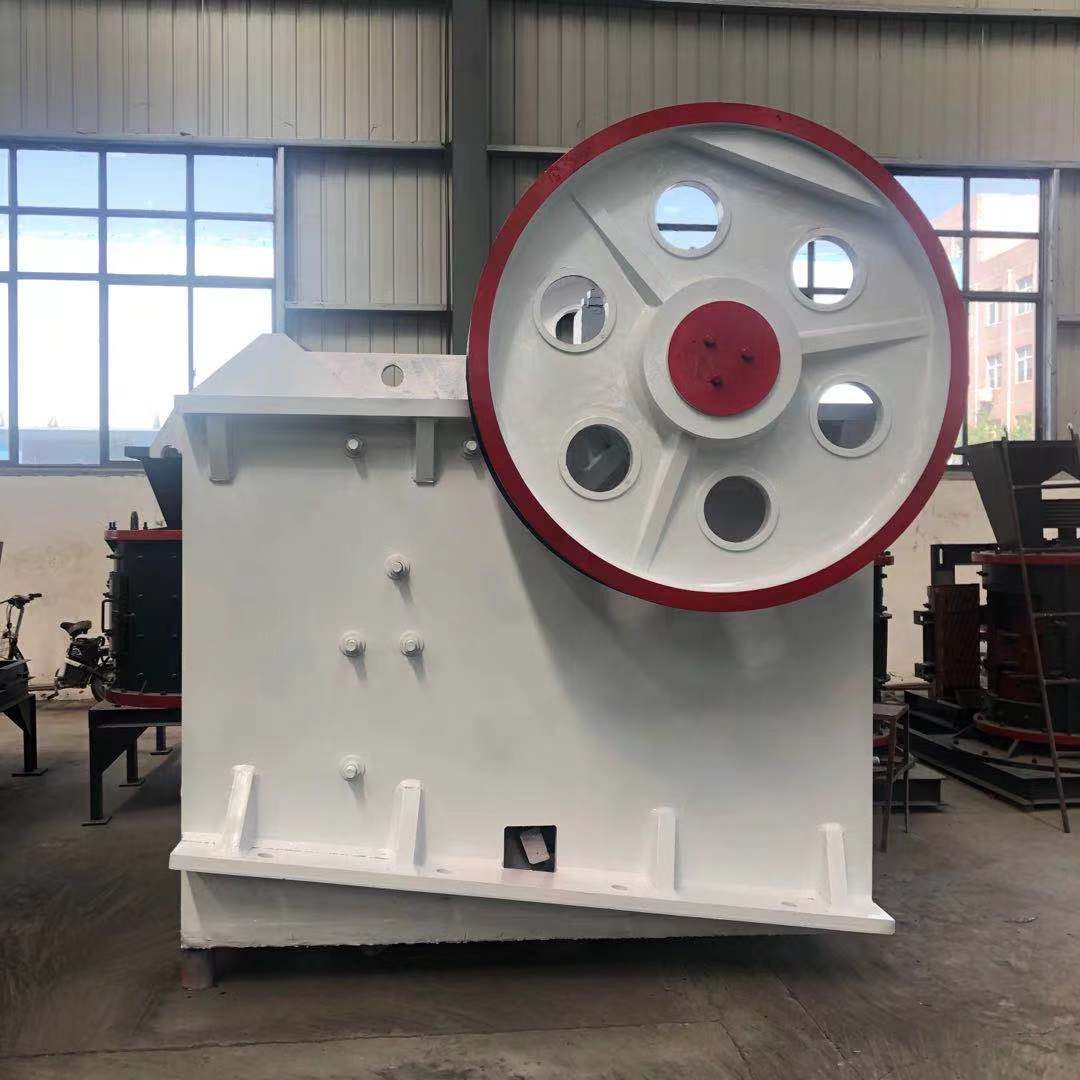

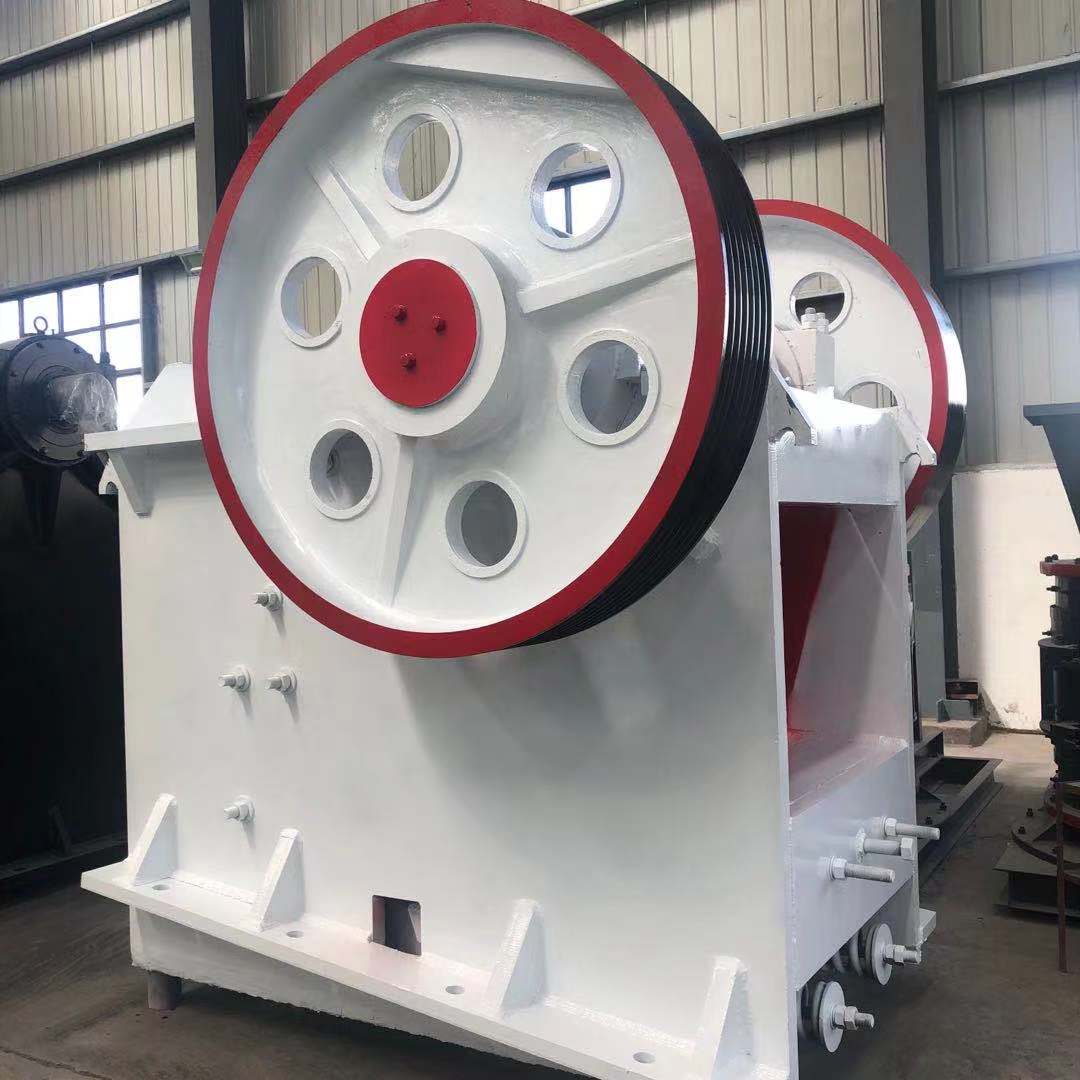

About of Jaw Crusher

　　Jaw crusher is a common coarse crushing equipment, mainly used for crushing ores and rocks with higher hardness. Its working principle is to squeeze and crush materials through the periodic movement。of the movable jaw and the fixed jaw. The jaw crusher has a simple structure and is easy to maintain. It is widely used in mining, building materials, metallurgy and other fields. It has the characteristics of high strength, high reliability, good durability, strong crushing force, large crushing particle size and high output. It is often used for primary crushing of various stone and ore crushing production lines.

Product Advantage

　　1. High crushing ratio, well-distributed final product size.

　　2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it can meet various requirements of customers.

　　3. Lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance.

　　4. Simple structure, reliable performance, low maintenance cost.

　　5. Little dust and low noise.

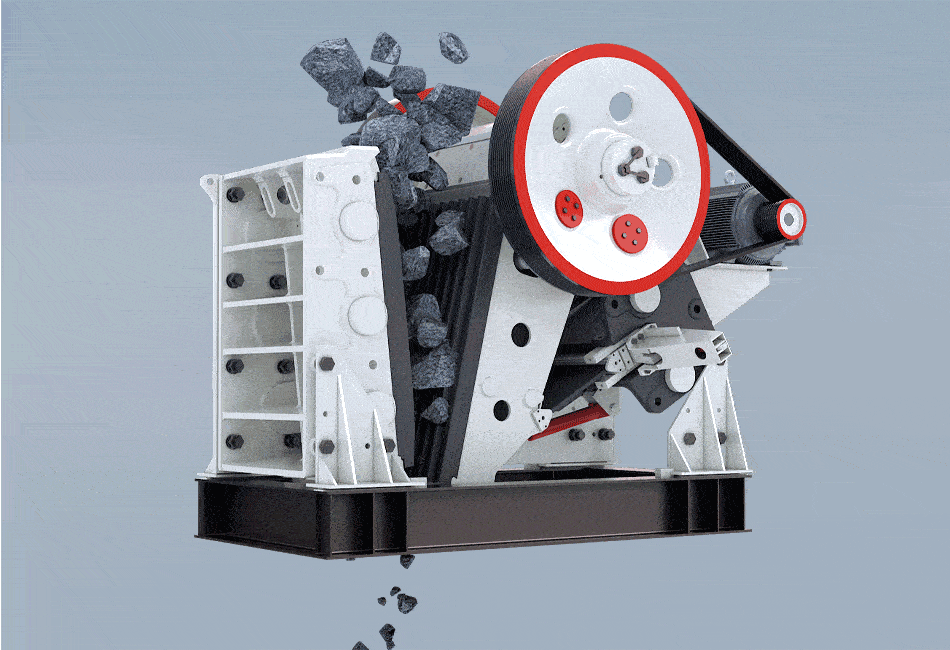

How is works

　　The main parts include fixed jaw plate, movable jaw plate, eccentric shaft, connecting rod and adjusting device. The fixed jaw plate is fixed, and the movable jaw plate is driven by the eccentric shaft and connecting rod to do
reciprocating motion. The material enters the crushing chamber from the top and is located between the two jaw plates. The motor drives the eccentric shaft and drives the movable jaw plate to reciprocate, and when it is close to the fixed jaw plate, it squeezes the material to make it crushed. The crushed material is discharged from the bottom by gravity. The distance between the movable jaw plate and the fixed jaw plate can be changed through the adjusting device to control the granularity of the discharged material.

Product Specifications

*Note: Technical data are subject to change without prior notice.

Model	Feed opening (mm)	Max. Feeding Size (mm)	Adjustable Discharge opening (mm)	Capacity (t/h)	Motor Power (kW)	Overall Dimensions (mm)	Weight (t)
PE250×400	250X400	200	20-60	5-20	15(20)	1150×1275×1240	2.8
PE250x1000	250X1000	210	15-50	15-50	30(40)	2790x2670x1380	6.5
PE400×600	400X600	350	40-100	15-60	30(40)	1700×1732×1653	6.5
PE500×750	500X750	425	50-100	50-100	55(75)	2035×1921×2000	10.3
PE600×900	600X900	500	65-160	60-130	75(100)	2290×2206×2370	16
PE750×1060	750X1060	630	80-140	110-250	110(150)	2620×2302×3110	27
PE900×1200	900X1200	750	100-200	160-380	130(175)	3789×2826×3025	46.5
PE1000×1200	1000X1200	850	200-300	315-550	130(175)	3889×2826×3025	56
PE1200×1500	1200X1500	1000	150-350	400-800	200(270)	4930X3148X3560	88
